H03VV-F，，，，，H03VVH2-F

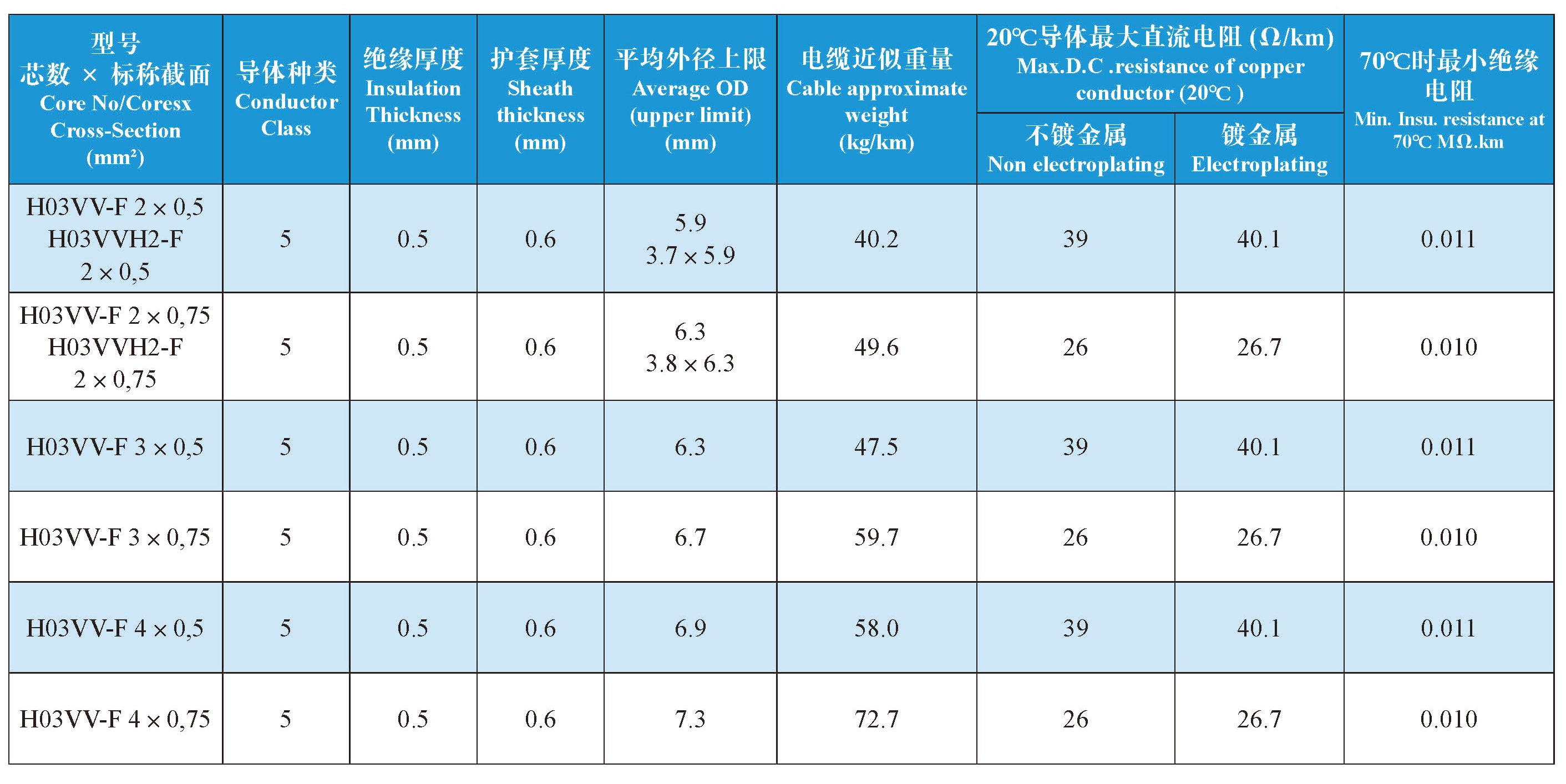

• 产品简介： H03VV-F，，，，，H03VVH2-F  Application Scope:Available for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.H03VV-F，，，，，H03VVH2-F Structure:Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5, HD21.5S3 IEC 227-5Insulation: PVC/TM2PVC in accordance with DIN VDE 0281.Color ID: In accordance with HD 402 StandardJacket Material: PVC/TM2 PVCApplication Standard:HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,CE(Low voltage)73/23/EEC & 93/68/EECH03VV-F，，，，，H03VVH2-F Features & Conformity:Features: Super ?ne conductor, ?exible for small bending angle Durable for certain external mechanical forcesIn accordance with EU coordination standardConformity Approval: RoHS CEH03VV-F，，，，，H03VVH2-F Technical Parameters:Rated Voltage：300/300VTest Voltage：2000V HD21.2 In accordance with DIN VDE 0281 Part 2 HD21.2Min. Bending RadiusFixed Installation：5×D（Cable OD）Movable Installation：8×D（Cable OD）Temperature RangeFixed Installation：-20 To +70℃Movable Installation：-5 To +70℃
• 配套服务：
  支持定制 物流配送 免费装置 现场培训 后期维护
• 相关产品：


  HO5VVH6-F（0.75mm2-1mm2 3-24芯，，，，，25-60芯）



  HO5VVC4V5-K



  HO5Z1Z1H2-F
